smn-lab

An embodied, configurable experimental bench for the Sensation Modulating Network (SMN) architecture, built on MuJoCo. The control architecture the SMN specifies drives a physical body in a physics world, so the architecture's predicted contrasts (its registers) can be reproduced from real sensorimotor engagement — and the modulatory coupling topology (the "balance beam") can be varied as an experimental variable.

Architecture reference: Nagarjuna, G. & D. Karnam. The Sensation Modulating Network. arXiv:2605.26856.

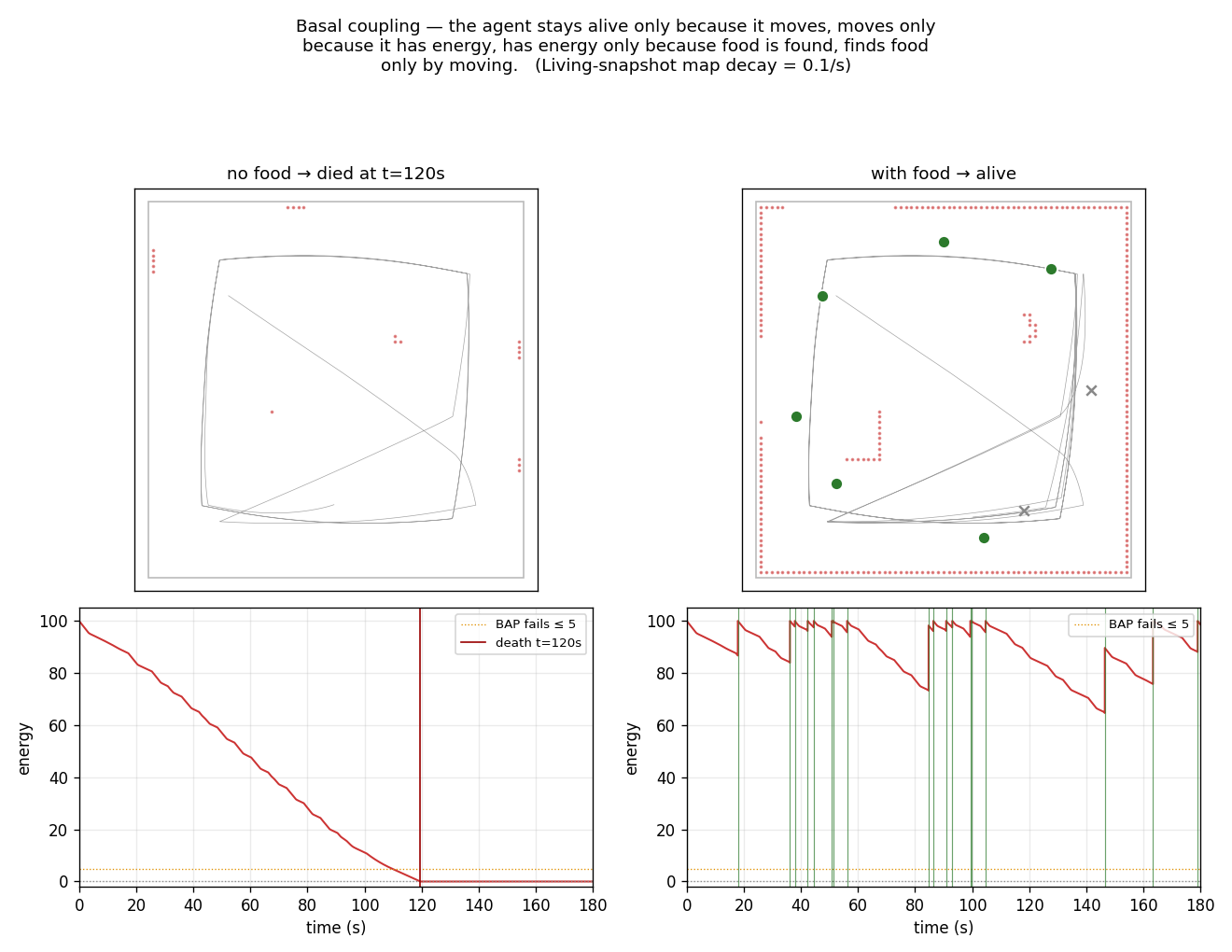

From the Basal coupling experiment — same agent in both columns; only the world differs. The closed loop of movement ↔ energy ↔ food ↔ living map sustains the agent when the world feeds back, and opens when it does not.

What's in the lab

Library (smn_lab/)

module	what it provides
body.py	MouseSchema — the explicit body geometry (every zone's body-frame location), shared by the model builder and the agent.
model.py	build_p0/p1/p2_xml — MJCF body + world builders.
control.py	OpponentBoard, ReafferencePredictor, CPG (BAP drive), HAPExplorer (affordance-recruited, swappable routing), DifferentialDrive (located drive zones), DeadReckoner (proprioceptive self-localization).
worldmodel.py	OccupancyMap, surface sampling, the point-based coverage/precision score, data dump.

Experiments (experiments/)

experiment	shows	page
p0_reafference.py	reafference (self vs world) in a single CAZ	P0
p0_visual.py	same reafference register at the visual level (camera + 8×8 patch modulator)	P0-visual
p1_visual.py	the multi-CAZ eye: ±body yaw — eye saccades alone construct the snapshot	P1-visual
p1v_static_world.py	only agent-side modulation: change vs presence, and floor-as-scene-memory	P1-visual / static-world
p1_world_model.py	a multi-CAZ agent builds a world model (true pose)	P1
p2_world_model.py	the same, body-relative + self-localized (no god's-eye pose)	P2
p2_topology_sweep.py	the balance-beam sweep: routing × morphology × ±BAP/±HAP × noise	Sweep
p2_living_snapshot.py	the world model decays where unrevisited (a living snapshot)	Living snapshot
p2_basal_coupling.py	why the agent moves — energy · food · map · motion as one closed loop	Basal coupling
p2_map_guided_foraging.py	the map's decay rate as a direct survival pressure	Map-guided foraging
scene_geometry.py	the body schema + agent-in-scene figures (and a MuJoCo render)	—

Quickstart

python3 -m venv .venv
.venv/bin/pip install -r requirements.txt
cd experiments && ../.venv/bin/python p2_world_model.py

How the pieces fit

MouseSchema (body geometry) builds the MuJoCo body and is also what the agent knows about itself. Each step: the whisker transducers sense; the HAP layer turns affordances into a steering command (its routing is the balance beam); the BAP provides the locomotor drive; the DifferentialDrive board turns (forward, turn) into the located opponent drive-zone activations; the agent self-localizes from proprioception and places hits into its world model. The experiment holds the body/world/task fixed and varies the balance beam, measuring the constructed world model (coverage, precision, drift).

See also

• Concepts — the SMN → simulation mapping and vocabulary.
• Assumptions — what is simulated vs computed vs idealized (common + per-experiment).
• NetLogo integration (feasibility report) — the four realistic paths to plant smn-lab in the NetLogo house, and the honest version of the visibility argument.
• Building these docs: pip install mkdocs && mkdocs serve (or publish via Read the Docs).
