P0 — reafference (self vs world) in a single CAZ

What it shows

The reafference register: an agent distinguishes self-caused from world-caused sensory change, structurally, from its own wiring. The self/world distinction emerges — it is not a category applied on top.

Setup

A single Coordinated Action Zone: a yaw "head" driven by a pull-only antagonist pair (two MuJoCo motor actuators on the yaw joint), carrying one rangefinder whisker, inside a walled arena. A movable object delivers exafference — a world-caused change the agent did not produce.

A forward model (ReafferencePredictor) learns the whisker reading as a function of the head's own heading during a self-motion phase, then predicts it from efference/proprioception alone; the residual (actual − predicted) is the reafference signal.

Assumptions specific to P0

(in addition to the common assumptions) - The head only rotates; there is no locomotion. - The world is static except for a scheduled exafference object that slides in during the test window. - The forward model is a binned running mean of range vs heading. - A 5 mm rangefinder noise floor is added; the predictor learns from noisy readings (the bin mean averages noise out).

Run

cd experiments && ../.venv/bin/python p0_reafference.py

Outputs

  • figures/p0_reafference.png — whisker reading vs forward-model prediction (top) and residual over time with phase shading (bottom).
  • printed stats: self-test vs exafference mean residual, ratio, verdict.

Result & interpretation

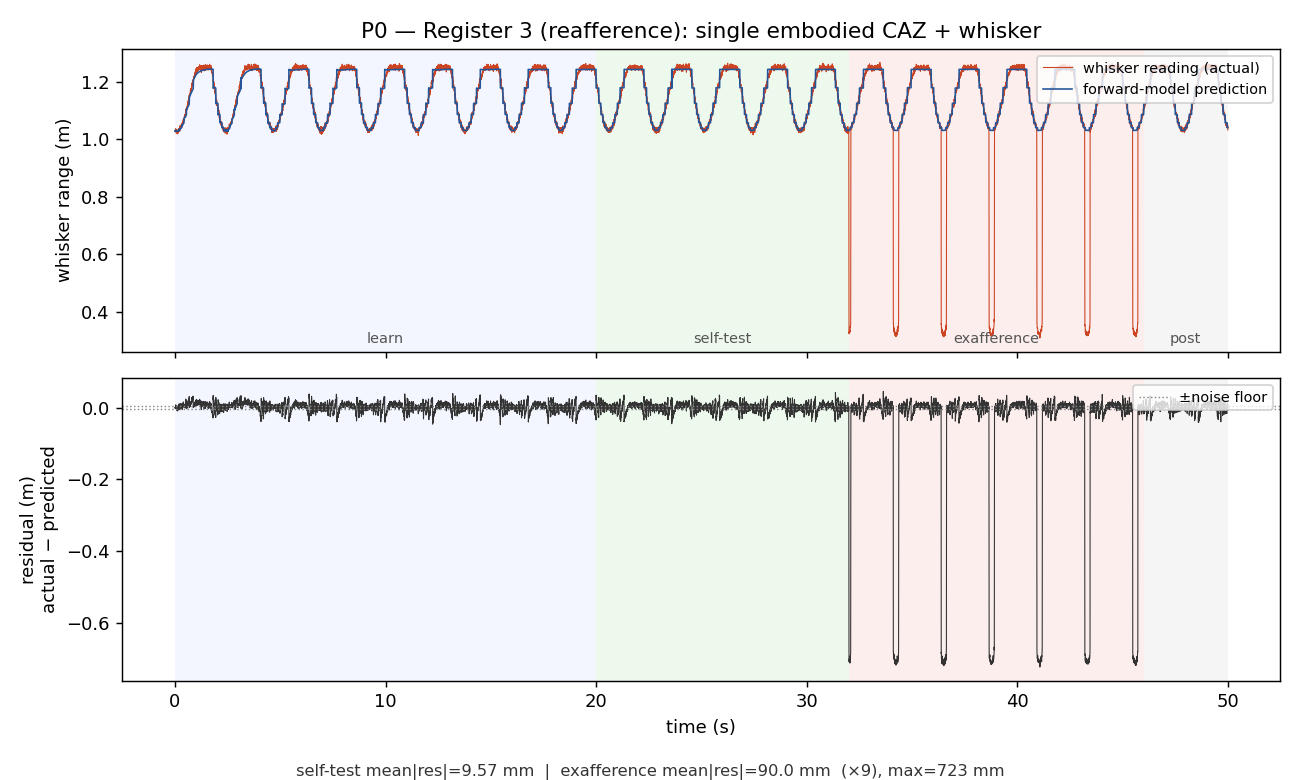

P0 reafference — whisker reading vs forward-model prediction; residual over time with phase shading

Top: whisker reading vs forward-model prediction along the agent's heading. Bottom: residual over time, with the self-motion and exafference phases shaded. The residual sits at the sensor noise floor under self-motion and jumps roughly nine-fold when the object the agent did not move slides in.

Under self-motion (static world) the residual sits at the noise floor (~9.6 mm); when the object the agent did not move slides in, the residual jumps (~90 mm mean, ×9.4, peak ~723 mm). Self-caused change is predicted away; world-caused change is not — the structural basis of the self/world distinction.
